[Game Analysis] EDA - Game Event, Player Participation

작성일자 : 2024-09-25

수정일자 : 2024-09-29

Ver 0.1.2

1. 데이터 준비

Terra Mystica Snellman Statistics

Terra Mystica Snellman Statistics

---

2. EDA - 데이터 파악

# 모듈 import
import os
import pandas as pd
import numpy as np
import seaborn as sns
import matplotlib.pyplot as plt
from matplotlib.gridspec import GridSpec

# Directory 확인
os.getcwd()

'/Users/limjongjun/Desktop/JayJay/Growth/Python/Game_Analysis/ipynb'



Game Event

# 데이터 Directory 할당 및 변경
data_dir = '/Users/limjongjun/Desktop/JayJay/Growth/Python/Game_Analysis/Data'

os.chdir(data_dir)
os.getcwd()

'/Users/limjongjun/Desktop/JayJay/Growth/Python/Game_Analysis/Data'

# 데이터 불러오기 및 정보 확인
df = pd.read_csv('game_events.csv',  chunksize = 1000)  # 적당한 청크 크기 설정

# 샘플링을 위해 각 청크에서 일정 비율로 데이터 추출
game_events_sample = pd.concat([chunk.sample(frac = 0.01) for chunk in df])  # 예: 1% 샘플링

print(game_events_sample.info())
print('\n')
print('------------')
print('\n')
print(game_events_sample.head())
print('\n')
print('------------')
print('\n')
print("데이터 구조 확인", game_events_sample.shape)



<class 'pandas.core.frame.DataFrame'>

Index: 734191 entries, 678 to 73419021

Data columns (total 6 columns):

 #   Column   Non-Null Count   Dtype

---  ------   --------------   -----

 0   event    734191 non-null  object

 1   faction  734191 non-null  object

 2   game     734183 non-null  object

 3   num      734191 non-null  int64

 4   round    734191 non-null  int64

 5   turn     734191 non-null  int64

dtypes: int64(3), object(3)

memory usage: 39.2+ MB

None





------------





           event      faction   game  num  round  turn

678   upgrade:SA          all  50615    1      6     3

319  leech:count  dragonlords  50615    1      1     2

581     town:TW7          all  50615    1      4     2

676   upgrade:SA          all  50615    1      6     1

694      build:D          all  50615    1      5     4





------------





데이터 구조 확인 (734191, 6)

# columns 확인
print("<colums 확인>")
print(game_events_sample.columns)

<colums 확인>

Index(['event', 'faction', 'game', 'num', 'round', 'turn'], dtype='object')



• game: String used as a unique identifier for the game
• event: String describing various events occurring within the game (ex: vp, upgrade:TP, build:D etc).
• faction: String representing the camp associated with the event.
• num: An integer that represents the numerical value or frequency of occurrence of an event.
• round: An integer that represents the round of the game in which the event occurred.
• turn: An integer that represents the turn on which the event occurred.



print("dtype이 'object'인 컬럼 이름만 리스트로 가져오기")
print('\n')
# dtype이 'object'인 컬럼 이름만 리스트로 가져오기
object_columns = game_events_sample.select_dtypes(include='object').columns.tolist()
print(object_columns)
print('\n')
print('------------')
print('\n')

# 컬럼별 Unique 값 확인
print("컬럼별 Unique 값 확인")
print('\n')
for i in object_columns :
 print(game_events_sample[i].unique())
 print('\n')
 print('------------')
 print('\n')

dtype이 'object'인 컬럼 이름만 리스트로 가져오기





['event', 'faction', 'game']





------------





컬럼별 Unique 값 확인





['upgrade:SH' 'order:2' 'order:1' 'vp' 'upgrade:TP' 'town:TW1' 'pass:BON4'

 'action:ACT2' 'pass:BON5' 'bridge' 'pass:BON6' 'dig' 'leech:pw'

 'town:any' 'pass:BON9' 'leech:count' 'upgrade:TE' 'action:ACT1'

 'favor:FAV7' 'favor:any' 'build:D' 'burn' 'action:ACT3' 'advance:ship'

 'action:ACT4' 'town:TW4' 'action:FAV6' 'action:ACT5' 'pass:BON10'

 'mermaid:connect' 'favor:FAV6' 'town:TW7' 'pick-color:brown' 'decline:pw'

 'decline:count' 'favor:FAV12' 'action:BON1' 'pass:BON7' 'pass:BON1'

 'upgrade:SA' 'order:4' 'favor:FAV11' 'favor:FAV4' 'pick-color:red'

 'pass:BON3' 'order:3' 'town:TW3' 'favor:FAV3' 'town:TW2' 'advance:dig'

 'pick-color:blue' 'action:ACT6' 'pass:BON8' 'favor:FAV10' 'town:TW6'

 'favor:FAV5' 'pick-color:green' 'town:TW5' 'town:TW8' 'favor:FAV1'

 'favor:FAV2' 'action:BON2' 'pass:BON2' 'action:ACTN' 'order:5'

 'favor:FAV8' 'favor:FAV9' 'action:ACTA' 'action:ACTE' 'action:ACTW'

 'leech-from-cultist:pw' 'decline-from-cultist:count'

 'leech-from-cultist:count' 'decline-from-cultist:pw' 'cultist:cult'

 'cultist:pw' 'drop' 'action:ACTS' 'action:ACTC' 'action:ACTH2'

 'pick-color:black' 'pick-color:gray' 'action:ACTH1' 'pick-color:yellow'

 'action:ACTG' 'order:6' 'action:ACTH5' 'action:ACTH3' 'action:ACTH4'

 'order:7' 'action:ACTH6']





------------





['halflings' 'all' 'mermaids' 'dragonlords' 'riverwalkers' 'yetis'

 'darklings' 'chaosmagicians' 'engineers' 'icemaidens' 'nomads' 'auren'

 'fakirs' 'witches' 'cultists' 'alchemists' 'swarmlings' 'dwarves'

 'shapeshifters' 'nofaction1' 'nofaction4' 'acolytes' 'giants'

 'nofaction3' 'nofaction2' 'nofaction5' 'nofaction7']





------------





['0000000001' '050615' '0512' ... 'ytuwertqwtr' 'yuertyqert'

 'ZeicheMasZeuchnis']





------------

game_events['event'] 속성

• action:* - Special / power actions taken
• advance:* - Actions to advance on shipping / digging
• bridge - Bridge built
• build:D - Dwellings built
• burn - Amount of power burned
• cultist:cult - Amount of awards cultist/shapeshifter received from opponent leeching
• cultist:pw - Amount of awards cultist/shapeshifter received from all opponents declining leech
• decline:count - Number of times leech was declined
• decline:pw - Amount of leeched power that was declined
• decline-from-cultist:count - Number of times this faction declined leech form cultists
• decline-from-cultist:pw - Amount of power this faction declined from cultists
• dig - Number of spades generated by converting workers / priests (for volcano factions number of volcanos created)
• drop - 1 if faction dropped out on that turn
• favor:* - Favors taken
• leech:count - Number of times leech was accepted
• leech:pw - Amount of power generated by leeching
• leech-from-cultist:count - Number of times faction leeched from cultists / shapeshifters
• leech-from-cultist:pw - Amount of power this faction leeched from cultists / hapeshifters
• mermaid:connect - Mermaid special ability used to create town
• order:* - Being on a specific place in turn order (e.g. order:2 shows rounds where faction was second in turn order)
• pass:* - Passing to take this bonus tile
• town:* - Taking this town tile
• upgrade:* - Creating one of these buildings by upgrading
• vp: Number of VP received (from any source)

PlayerParticipation

# 데이터 파일 로드 함수 할당
def load_data(filepath) :
  try :
      return pd.read_csv(filepath)
  except  Exception as e :
      print(f"Error loading {filepath} : {str(e)}")
      return None

# 데이터 로드
game_factions = load_data('game_factions.csv')



모든 파일의 기본적인 데이터 특성 파악

### 모든 파일의 기본적인 데이터 특성파악과 전처리

# 함수 정의
def analyze_csv(file_path) :
  try :
      # 데이터 로드
      df = pd.read_csv(file_path)
      print(f"File loaded: {file_path}")

      # 컬럼정보
      print("Columns:")
      print(df.columns.tolist())

      # 데이터 타입
      print("Data Type")
      print(df.dtypes)

      #결측치 개수
      print("Number of Missing Values:")
      print(df.isnull().sum())

      #기본 통계 요약
      print("Basic Statistical Summary:")
      print(df.describe(include = 'all'))

      print("\n" + "-" * 50 + "\n") #구분선
  except Exception as e:
    print(f"Failed to load {file_path}: str(e)")

# 파일 경로 리스트
file_paths = ['game_factions.csv'
             ,'game_locations.csv'
             ,'game_options.csv'
             ,'game_scoring_tiles.csv'
             ,'games.csv'
             ,'ratings_factions.csv'
             ,'ratings_player_factions.csv'
             ,'ratings_players.csv'
             ,'stats.csv'
             ,'sample_game_events.csv']

# 각 파일에 대한 분석 수행
for path in file_paths :
  analyze_csv(path)

---

3. EDA - 데이터 시각화

Game Event

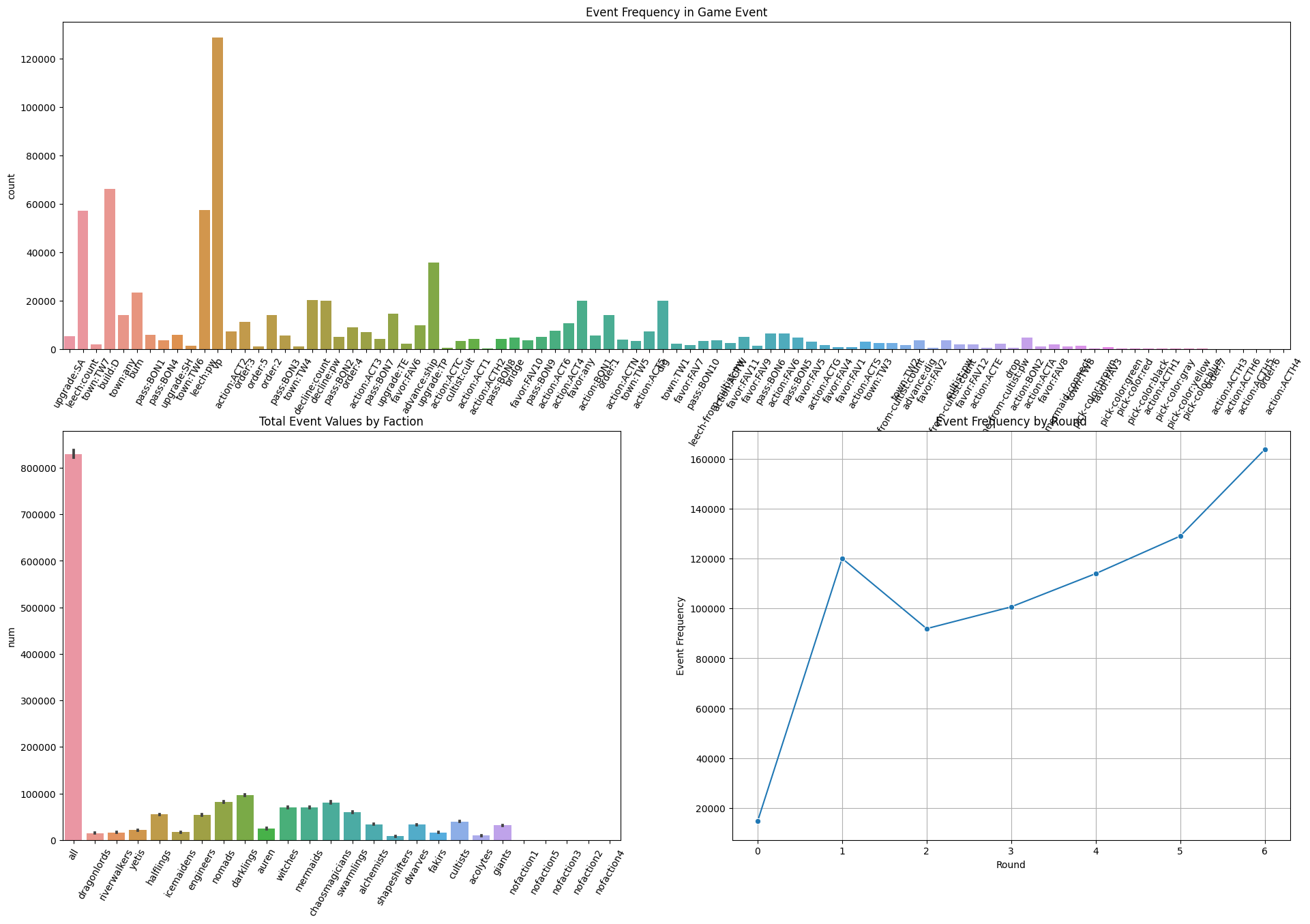

warnings.filterwarnings('ignore')

# figure 생성
fig = plt.figure(figsize=(10, 8))

# 상단 그리드 설정 (nrows=1, ncols=1)
gs1_nrows = 1
gs1_ncols = 1
gs1 = fig.add_gridspec(nrows = gs1_nrows, ncols = gs1_ncols, left = 0, bottom = 0.4, top = 1)

# 상단 subplot
ax1 = fig.add_subplot(gs1[0, 0])
sns.countplot(data = game_events_sample, x = 'event', ax = ax1)
ax1.set_title('Event Frequency in Game Event')
ax1.set_xticks(ax1.get_xticks())  # xticks 추가 (회전 적용)
ax1.set_xticklabels(ax1.get_xticklabels(), rotation=60)
ax1.set_xlabel('')

# 하단 그리드 설정 (nrows=1, ncols=2)
gs2_nrows = 1
gs2_ncols = 2
gs2 = fig.add_gridspec(nrows = gs2_nrows, ncols = gs2_ncols, left = 0, bottom = 0, top = 0.5)

# 하단 왼쪽 subplot (첫 번째 subplot)
ax2 = fig.add_subplot(gs2[0, 0])
sns.barplot(data = game_events_sample, x = 'faction', y = 'num', estimator = sum, ax = ax2)
ax2.set_title('Total Event Values by Faction')
ax2.set_xticks(ax2.get_xticks())  # xticks 추가 (회전 적용)
ax2.set_xticklabels(ax2.get_xticklabels(), rotation=60)
ax2.set_xlabel('')

# 하단 오른쪽 subplot (두 번째 subplot)
ax3 = fig.add_subplot(gs2[0, 1])
round_event_count = game_events_sample.groupby('round').size().reset_index(name='counts')
sns.lineplot(data = round_event_count, x = 'round', y = 'counts', marker='o')
plt.title('Event Frequency by Round')
plt.xlabel('Round')
plt.ylabel('Event Frequency')
plt.grid(True)
plt.tight_layout()
plt.show()

# 레이아웃 최적화
fig.tight_layout()

# 그래프 출력
plt.show()

Player Participation

#Player별 Count 및 Index Reset
player_activity = game_factions['player'].value_counts().reset_index()

#Player_activity의 Columns 이름 재할당
player_activity.columns = ['player', 'frequency']

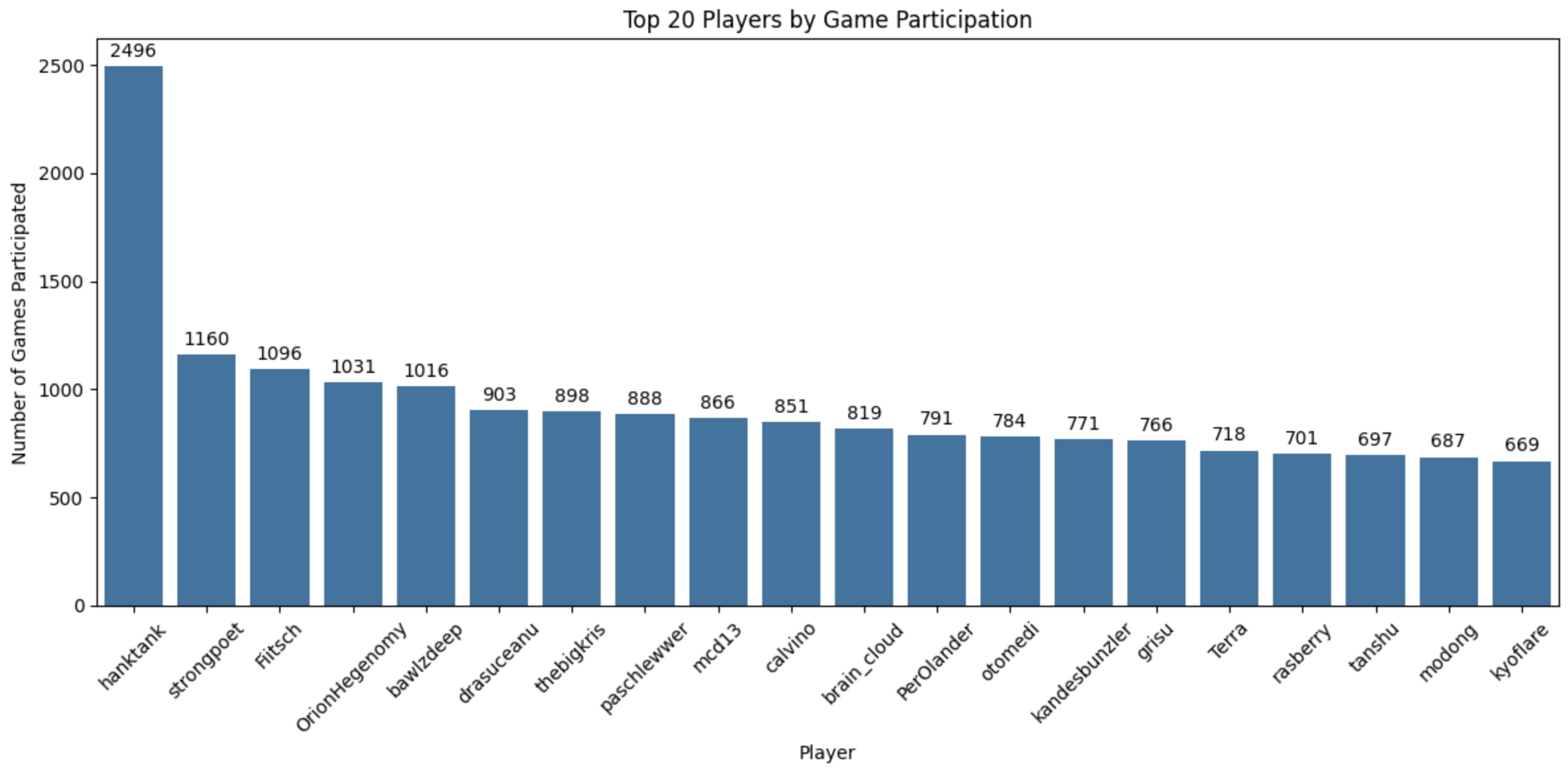

#상위 20명 Player 참여 빈도 시각화
plt.figure(figsize = (12,6))
ax = sns.barplot(data=player_activity.head(20), x='player', y='frequency')
plt.title('Top 20 Players by Game Participation')
plt.xlabel('Player')
plt.ylabel('Number of Games Participated')
plt.xticks(rotation = 45)

# 막대 위에 각 frequency 값을 표시하는 코드
for p in ax.patches:
    ax.annotate(format(p.get_height(), '.0f'),
                (p.get_x() + p.get_width() / 2., p.get_height()),
                ha='center', va='center',
                xytext=(0, 8),
                textcoords='offset points')
    # ax.patches를 사용하여 각 막대에 접근.
    # ax.annotate()로 막대 위에 값을 표시:
    # p.get_height()는 막대의 높이(빈도수)를 가져옴.
    # p.get_x() + p.get_width() / 2.는 막대의 중앙에 값을 배치.
    # xytext=(0, 8)은 텍스트를 막대 위에 조금 띄워서 위치시킴.
    # format(p.get_height(), '.0f')로 소수점 없이 정수로 표시.

plt.tight_layout()
plt.show()
